The Cairns Mental Health Unit, also known as Jugarrbaajing—a Gimuy Walubara Yidinji term meaning “unsettled mind”—is a landmark project redefining mental health care in Far North Queensland. Developed by the Queensland Government, the unit forms part of the Cairns Hospital campus and was purposefully designed to meet the region’s growing and complex mental health needs.
Commencing in 2022 with an allocated budget of $83.4 million. The project was completed mid-2024 and was officially opened in January 2025.
Hutchinson Builders led construction, with architectural design by Thomas Adsett. The consultant team had included Stantec and Wood, as well as Grieve Engineers, each contributing specialist knowledge to this highly integrated development.
Key Obstacles and How They Were Overcome
- Cyclonic Conditions: Cairns lies in a cyclone-prone region, requiring the building to be engineered for extreme weather resilience. Light gauge metal framing and specially selected materials were used to withstand high winds while maintaining safety and functionality.
- Site Constraints: Situated on the final developable portion of the Cairns Hospital campus, the project required demolition of the existing mental health unit. Construction was carefully managed to integrate new infrastructure without disrupting ongoing hospital operations.
The facility houses 53 beds across three levels, including a 10-bed Mental Health Intensive Care Unit, two adult acute inpatient units, and accommodation for individuals with special needs. Future expansion was considered in the foundational design, with additional capacity planned into the ground level.
A core objective of the unit was to co-locate inpatient and community-based mental health services, establishing a unified precinct that supports continuity of care. The design prioritises therapeutic elements—such as natural lighting, access to green spaces, and sensory landscaping—to create an environment that fosters healing and psychological comfort.
A key hallmark of the project is its deep cultural sensitivity. The naming of the facility and the design process itself were developed in close collaboration with Traditional Custodians of the region. This ensured the space honours cultural narratives and incorporates trauma-informed principles that build a strong connection to place and community.
Beyond bricks and mortar, the Cairns Mental Health unit represents an investment in health equity and long-term well-being for communities. It stands as both a flagship facility for Queensland and a model for future regional mental health infrastructure.
Draftech’s Involvement: Electrical Services Coordination and Detail Shop Drawings

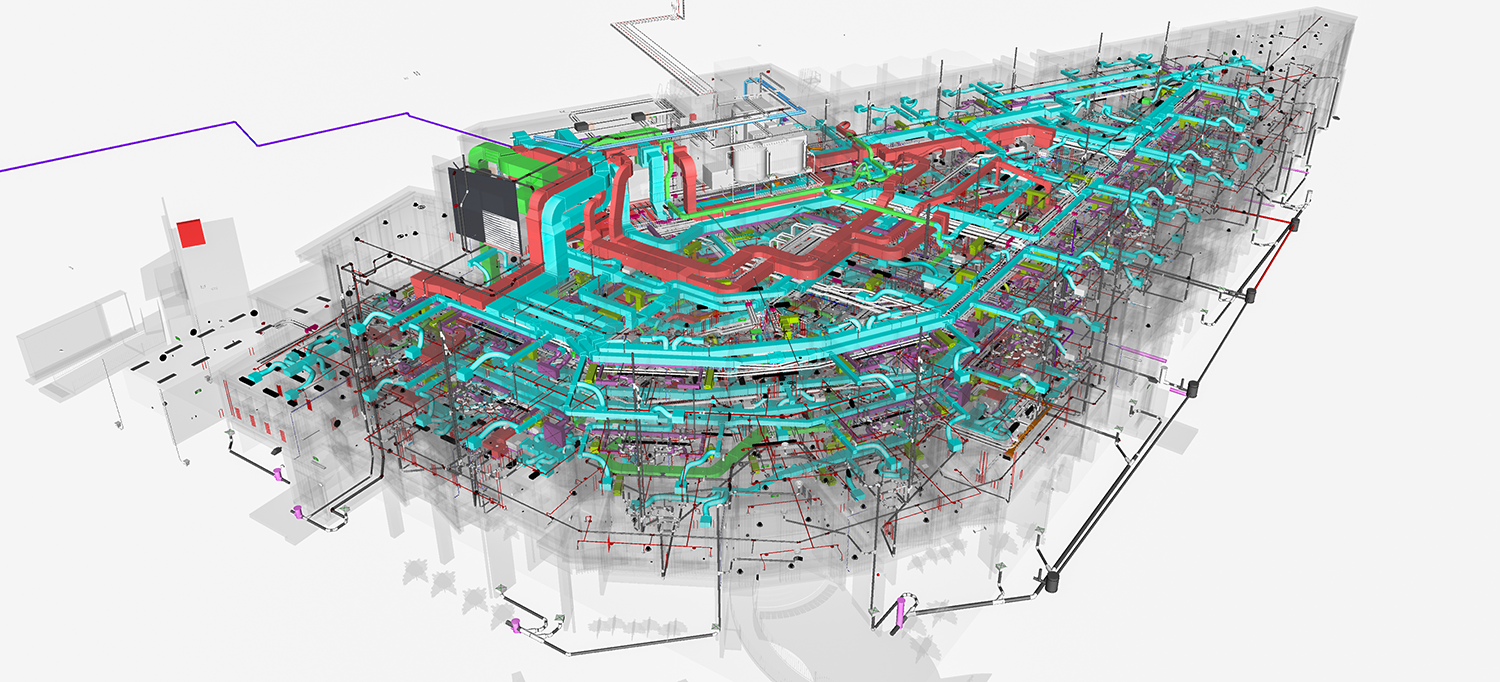

The corridor areas presented a significant challenge due to the high density of cable trays running throughout the space. In addition to this, transfer ducts—essential for maintaining privacy between rooms—also needed to run through these same corridors. This combination left very limited spatial allowances, resulting in a series of tight and complex coordination scenarios. To overcome these constraints, we collaborated closely with the lead mechanical trade to develop a workable solution. Once a viable layout was agreed upon, we produced a highly detailed set of drawings, accurate to the millimetre, for the site team to follow during installation.
Given the sheer volume of electrical containment required on this project, the electrical trade often had to take the lead in coordinating the layout, as their systems occupied most of the available space. The main challenge, however, was translating a digital solution—perfectly optimized in the model—into a practical installation on-site. This demanded an iterative approach: proposed solutions had to be tested in the field to ensure feasibility, followed by refining the detailing method to best suit the realities of physical installation. This process ensured that what worked in theory could be reliably executed in practice, aligning the virtual model with on-site construction demands. We successfully delivered and completed this amazing project.
Draftech – Your Project, Our Expertise
